Printer Specifications for HP Sprocket Select Photo Printers

This document is for HP Sprocket Select Photo Printers.
Review this document for detailed technical data, such as product numbers, system requirements, print speeds, connectivity types, physical dimensions, power supply, paper handling, and printing specifications.

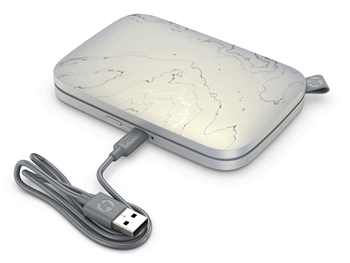

HP Sprocket Photo Printers

Printer specifications

Product numbers
5XH49A (Eclipse)
5XH50A (Sea Mist)
Dimensions and weight
88.0 x 130.4 x 17.5 mm (3.48 x 5.13 x 0.69 in)
0.18 kg (0.40 lb)
Bluetooth 5.0
Printer management
HP sprocket app
Power supply
Up to 29 prints per charge
Two-cell internal rechargeable battery
700 mAh Li-ion 7.4 V
Charge time
Up to 120 minutes
Power consumption
0.94 W (standby)
Average 22.46 W (based on first print)
Maximum 36.2 W at 25° C (77° F)
Print technology
Thermal printing with a ZINK® Zero Ink® printer
The printer does not use ink cartridges to print.
Supported paper
HP Sprocket 5.8 x 8.7 cm (2.3 x 3.4 in) Photo Paper
Borderless printing
Support file types
TIFF (iOS only)
If you send a non-supported file type, the print job does not print.
Paper tray capacity
Up to 10 pages with the orange Print Quality Card (formerly Smartsheet)
64 MB
Print quality
321 x 600 dots per inch (dpi)
Print speed
Up to 72 seconds
Mobile operating systems and devices
Supported by Android mobile devices with OS 5.0 and later, and iOS 10.0.2 and later
Compatible with iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone 7 Plus, iPhone SE, iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPad Pro 12.9-inch (1st, 2nd and 3rd generation), iPad Pro 11-inch, iPad (4th, 5th, and 6th generation), iPad Pro 10.5- inch, iPad Pro 9.7-inch, iPad Air 2, iPad Air, iPad mini (2, 3, and 4), iPod touch (6th generation)
Control panel
Power button
Reset button
Status Indicator Light
Charge Indicator Light
Environmental parameters
Operating humidity: 5% to 70% RH (recommended)
Non-operating humidity: 5% to 90% RH
Operating temperature: 5° to 40° C (41° to 104° F)
Recommended operating temperature: 15° to 32° C (59° to 90° F)
Storage temperature: -40° to 60° C (-40° to 140° F)
Media storage: 0º to 25º C (32º to 77º F), 40% to 60% RH
One-year limited hardware warranty
Visit the HP Sprocket homepage for more information.

Regulatory model number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is VCVRA-1901. This regulatory number should not be confused with the marketing name (HP Sprocket Select Photo Printer) or the individual product numbers.

Material Safety Data Sheets

To view Material Safety Data Sheets (MSDS), go to (in English).

Ozone production

This product generates no appreciable ozone gas (O3).

Recycling program

HP offers an increasing number of product return and recycling programs in many countries and regions, and partners with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular products. For more information about the recycling of HP products, go to (in English).
